Performance Bearings Catalog
Hybrid CNC Parts’ offers a selection of complete high-temperature performance bearings made with nickel- and cobalt-based superalloys, chosen for their superior heat-, wear-, and corrosion-resistant properties.
Request a Quote
Please fill out a quote request form (PDF) and email it to quote@hybridcncparts.com.
For additional information or to discuss your project:
- support@hybridcncparts.com
- +1 (508) 461-9412
Downloads
Catalog

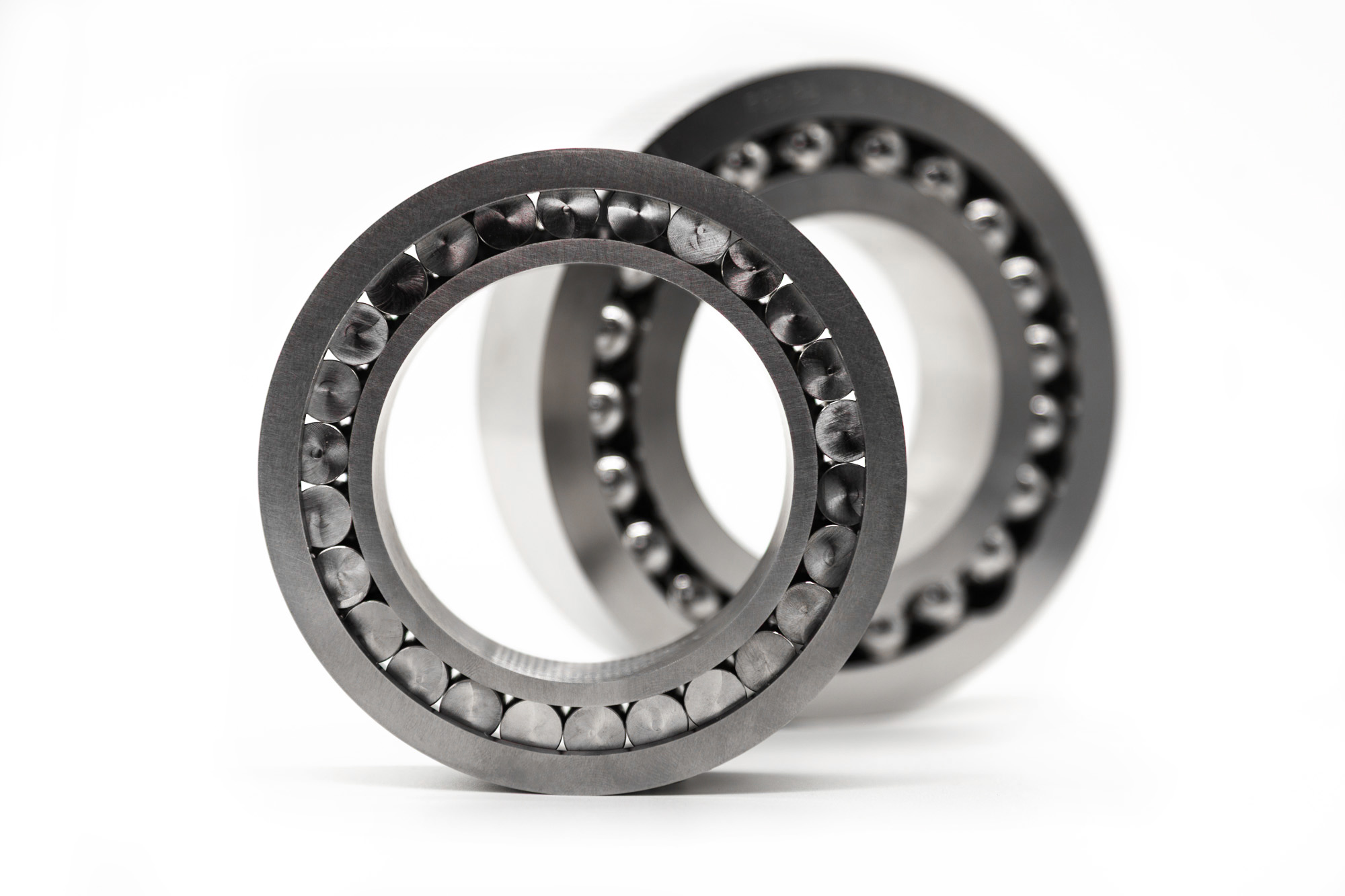

Made-to-order performance bearings are available as ball or roller bearings.
Ball Bearings:
- Angular Contact Ball Bearings, Single Row
- Angular Contact Ball Bearings, Double Row
- Deep Groove Ball Bearings, Double Row
Roller Bearings:
- Needle Roller Bearings, Single Row
- Cylindrical Roller Bearings, Single Row
Product Specification Tables
Products are sorted by bearing type and part number, with corresponding dimensions, materials, load ratings, operation ratings, and mass.
Customization
Customization is available upon request and will incur additional charges. Examples include custom serialization or special surface treatments.
Materials
Alloy |
Example Brands |
UNS Classification |
|---|---|---|
Nickel 718 |
Inconel®, Hastelloy®, Monel®, Techalloy® |
N07718 |
Cobalt 6 |
Stellite®, Polystel® |
R30006 |
Cobalt 20 |
Stellite® |
R30020 |
| Boundary Dimensions |
|---|
 Outside Diameter (D)Bore Diameter (d) Bearing Width (B) Wall Thickness (T) |
Specification Tables
Ball Bearings
| Properties | |
|---|---|
| Locating Feature | Yes (Outer Ring) |
| Ring Type | 1-Piece (Inner and Outer Rings) |
| Cage | None |
| Coating | None |
| Sealing | Open |
| Lubricant | None |
| Relubrication Feature | Without |
| Bore Type | Cylindrical |
| Ring Material | Nickel 718 (E.g. Inconel® 718, Techalloy® 718) |
| Ball Bearings Material | Cobalt 20 (E.g. Stellite® 20) |
Part No. |
Bore Diameter (d) |
Outside Diameter (D) |
Width (B) |
Static Load (lbf) |
Dynamic Load (lbf) |
Max. Speed (rpm) |
Temp. (°F) |
Mass (lbm) |
|---|---|---|---|---|---|---|---|---|
1000 |
0.5 |
2 |
0.25 |
1,843 |
5,773 |
5,354 |
500 |
0.59 |
1001 |
0.75 |
2.25 |
0.375 |
2,257 |
6,333 |
4,462 |
500 |
0.88 |
1002 |
1 |
2.5 |
0.5 |
2,778 |
6,981 |
3,825 |
500 |
1.25 |
1003 |
1.25 |
2.75 |
0.625 |
3,194 |
7,322 |
3,346 |
500 |
1.66 |
1004 |
1.5 |
3 |
0.75 |
3,604 |
7,683 |
2,975 |
500 |
2.13 |
1005 |
1.75 |
3.25 |
0.875 |
4,002 |
7,994 |
1,890 |
500 |
2.65 |
1006 |
2 |
3.5 |
1 |
4,437 |
8,223 |
1,718 |
500 |
3.24 |
1007 |
2.25 |
3.75 |
1.125 |
4,826 |
8,662 |
1,575 |
500 |
3.88 |
1008 |
2.5 |
4 |
0.25 |
5,125 |
8,796 |
2,059 |
500 |
1.43 |
1009 |
2.75 |
4.25 |
0.375 |
5,602 |
9,333 |
1,912 |
500 |
1.97 |
1010 |
3 |
4.5 |
0.5 |
5,886 |
9,345 |
1,785 |
500 |
2.56 |
1011 |
3.25 |
4.75 |
0.625 |
6,239 |
9,715 |
1,673 |
500 |
3.20 |
1012 |
3.5 |
5 |
0.75 |
6,510 |
10,078 |
1,575 |
500 |
3.90 |
1013 |
3.75 |
5.25 |
0.875 |
6,859 |
9,924 |
1,050 |
500 |
4.66 |
1014 |
4 |
5.5 |
1 |
7,208 |
10,257 |
995 |
500 |
5.48 |
1015 |
4.25 |
5.75 |
1.125 |
7,462 |
10,585 |
945 |
500 |
6.35 |
1016 |
4.5 |
6 |
0.25 |
7,921 |
11,015 |
1,275 |
500 |
2.29 |
1017 |
4.75 |
6.25 |
0.375 |
8,265 |
10,628 |
1,217 |
500 |
3.05 |
1018 |
5 |
6.5 |
0.5 |
8,610 |
10,921 |
1,164 |
500 |
3.86 |
1019 |
5.25 |
6.75 |
0.625 |
8,954 |
11,210 |
1,115 |
500 |
4.74 |
| Properties | |
|---|---|
| Locating Feature | Yes (Outer Ring) |
| Ring Type | 1-Piece (Inner and Outer Rings) |
| Cage | None |
| Coating | None |
| Sealing | Open |
| Lubricant | None |
| Relubrication Feature | Without |
| Bore Type | Cylindrical |
| Ring Material | Nickel 718 (E.g. Inconel® 718, Techalloy® 718) |
| Ball Bearings Material | Cobalt 20 (E.g. Stellite® 20) |
Part No. |
Bore Diameter (d) |
Outside Diameter (D) |
Width (B) |
Static Load (lbf) |
Dynamic Load (lbf) |
Max. Speed (rpm) |
Temp. (°F) |
Mass (lbm) |
|---|---|---|---|---|---|---|---|---|
2000 |
0.5 |
2 |
0.75 |
3,685 |
9,379 |
5,354 |
500 |
1.23 |
2001 |
0.75 |
2.25 |
0.875 |
4,514 |
10,289 |
3,150 |
500 |
1.64 |
2002 |
1 |
2.5 |
1 |
5,557 |
11,341 |
2,700 |
500 |
2.12 |
2003 |
1.25 |
2.75 |
1.125 |
6,388 |
11,894 |
2,362 |
500 |
2.65 |
2004 |
1.5 |
3 |
1.25 |
7,208 |
12,481 |
2,100 |
500 |
3.23 |
2005 |
1.75 |
3.25 |
1.375 |
8,005 |
12,986 |
1,890 |
500 |
3.88 |
2006 |
2 |
3.5 |
1.5 |
8,874 |
13,359 |
1,718 |
500 |
4.58 |
2007 |
2.25 |
3.75 |
1.625 |
9,652 |
14,071 |
1,575 |
500 |
5.34 |
2008 |
2.5 |
4 |
1.75 |
10,250 |
14,290 |
1,454 |
500 |
6.15 |
2009 |
2.75 |
4.25 |
1.875 |
11,203 |
15,162 |
1,350 |
500 |
7.05 |
2010 |
3 |
4.5 |
2 |
11,772 |
15,181 |
1,260 |
500 |
7.98 |
2011 |
3.25 |
4.75 |
2.125 |
12,478 |
15,782 |
1,181 |
500 |
8.97 |
2012 |
3.5 |
5 |
2.25 |
13,021 |
16,371 |
1,112 |
500 |
10.02 |
2013 |
3.75 |
5.25 |
2.375 |
13,718 |
16,122 |
1,050 |
500 |
11.13 |
2014 |
4 |
5.5 |
2.5 |
14,416 |
16,663 |
995 |
500 |
12.3 |
| Properties | |
|---|---|
| Locating Feature | Yes (Outer Ring) |
| Ring Type | 1-Piece (Inner and Outer Rings) |
| Cage | None |
| Coating | None |
| Sealing | Open |
| Lubricant | None |
| Relubrication Feature | Without |
| Bore Type | Cylindrical |
| Ring Material | Nickel 718 (E.g. Inconel® 718, Techalloy® 718) |
| Ball Bearings Material | Cobalt 20 (E.g. Stellite® 20) |
Part No. |
Bore Diameter (d) |
Outside Diameter (D) |
Width (B) |
Static Load (lbf) |
Dynamic Load (lbf) |
Max. Speed (rpm) |
Temp. (°F) |
Mass (lbm) |
|---|---|---|---|---|---|---|---|---|
3000 |
0.5 |
2 |
0.75 |
4,255 |
10,372 |
5,354 |
500 |
1.23 |
3001 |
0.75 |
2.25 |
0.875 |
5,213 |
11,475 |
3,150 |
500 |
1.64 |
3002 |
1 |
2.5 |
1 |
6,417 |
12,780 |
2,700 |
500 |
2.12 |
3003 |
1.25 |
2.75 |
1.125 |
7,376 |
13,526 |
2,362 |
500 |
2.65 |
3004 |
1.5 |
3 |
1.25 |
8,323 |
14,301 |
2,100 |
500 |
3.23 |
3005 |
1.75 |
3.25 |
1.375 |
9,243 |
14,970 |
1,890 |
500 |
3.88 |
3006 |
2 |
3.5 |
1.5 |
10,246 |
15,529 |
1,718 |
500 |
4.58 |
3007 |
2.25 |
3.75 |
1.625 |
11,145 |
16,003 |
1,575 |
500 |
5.34 |
3008 |
2.5 |
4 |
1.75 |
11,835 |
16,329 |
1,454 |
500 |
6.15 |
3009 |
2.75 |
4.25 |
1.875 |
12,936 |
17,326 |
1,350/td> |
500 |
7.05 |
3010 |
3 |
4.5 |
2 |
13,593 |
17,473 |
1,260 |
500 |
7.98 |
3011 |
3.25 |
4.75 |
2.125 |
14,409 |
18,165 |
1,181 |
500 |
8.97 |
3012 |
3.5 |
5 |
2.25 |
15,035 |
18,106 |
1,112 |
500 |
10.02 |
3013 |
3.75 |
5.25 |
2.375 |
15,841 |
18,746 |
1,050 |
500 |
11.13 |
3014 |
4 |
5.5 |
2.5 |
16,646 |
19,375 |
995 |
500 |
12.30 |
3015 |
4.25 |
5.75 |
2.625 |
17,232 |
19,018 |
945 |
500 |
13.53 |
Roller Bearings
| Properties | |
|---|---|
| Locating Feature | Yes (Outer Ring) |
| Ring Type | 1-Piece (Inner and Outer Rings) |
| Cage | None |
| Coating | None |
| Sealing | Open |
| Lubricant | None |
| Relubrication Feature | Without |
| Bore Type | Cylindrical |
| Ring Material | Nickel 718 (E.g. Inconel® 718, Techalloy® 718) |
| Ball Bearings Material | Cobalt 6 (E.g. Stellite® 6, Polystel® 6) |
Part No. |
Bore Diameter (d) |
Outside Diameter (D) |
Width (B) |
Static Load (lbf) |
Dynamic Load (lbf) |
Max. Speed (rpm) |
Temp. (°F) |
Mass (lbm) |
|---|---|---|---|---|---|---|---|---|
4000 |
0.5 |
2 |
0.25 |
5,349 |
9,491 |
5,354 |
500 |
0.59 |
4001 |
0.75 |
2.25 |
0.375 |
9,752 |
14,605 |
4,462 |
500 |
0.88 |
4002 |
1 |
2.5 |
0.5 |
15,921 |
20,702 |
3,825 |
500 |
1.25 |
4003 |
1.25 |
2.75 |
0.625 |
22,754 |
26,475 |
3,346 |
500 |
1.66 |
4004 |
1.5 |
3 |
0.75 |
30,710 |
32,665 |
2,975 |
500 |
2.13 |
4005 |
1.75 |
3.25 |
0.875 |
39,787 |
39,010 |
1,890 |
500 |
2.65 |
4006 |
2 |
3.5 |
1 |
49,982 |
45,465 |
1,718 |
500 |
3.24 |
4007 |
2.25 |
3.75 |
1.125 |
61,296 |
51,949 |
1,575 |
500 |
3.88 |
4008 |
2.5 |
4 |
0.25 |
14,745 |
16,696 |
2,059 |
500 |
1.43 |
4009 |
2.75 |
4.25 |
0.375 |
24,319 |
24,465 |
1,912 |
500 |
1.97 |
4010 |
3 |
4.5 |
0.5 |
34,672 |
31,263 |
1,785 |
500 |
2.56 |
4011 |
3.25 |
4.75 |
0.625 |
46,146 |
38,850 |
1,673 |
500 |
3.20 |
4012 |
3.5 |
5 |
0.75 |
58,739 |
45,301 |
1,575 |
500 |
3.90 |
4013 |
3.75 |
5.25 |
0.875 |
72,451 |
53,110 |
1,050 |
500 |
4.66 |
4014 |
4 |
5.5 |
1 |
87,281 |
61,156 |
995 |
500 |
5.48 |
4015 |
4.25 |
5.75 |
1.125 |
103,228 |
66,912 |
945 |
500 |
6.35 |
4016 |
4.5 |
6 |
0.25 |
24,412 |
21,722 |
1,275 |
500 |
2.29 |
4017 |
4.75 |
6.25 |
0.375 |
38,297 |
30,742 |
1,217 |
500 |
3.05 |
4018 |
5 |
6.5 |
0.5 |
53,301 |
39,646 |
1,164 |
500 |
3.86 |
4019 |
5.25 |
6.75 |
0.625 |
69,422 |
48,568 |
1,115 |
500 |
4.74 |
| Properties | |
|---|---|
| Locating Feature | Yes (Outer Ring) |
| Ring Type | 1-Piece (Inner and Outer Rings) |
| Cage | None |
| Coating | None |
| Sealing | Open |
| Lubricant | None |
| Relubrication Feature | Without |
| Bore Type | Cylindrical |
| Ring Material | Nickel 718 (E.g. Inconel® 718, Techalloy® 718) |
| Ball Bearings Material | Cobalt 6 (E.g. Stellite® 6, Polystel® 6) |
Part No. |
Bore Diameter (d) |
Outside Diameter (D) |
Width (B) |
Static Load (lbf) |
Dynamic Load (lbf) |
Max. Speed (rpm) |
Temp. (°F) |
Mass (lbm) |
|---|---|---|---|---|---|---|---|---|
5000 |
0.5 |
2 |
0.25 |
5,349 |
9,491 |
5,354 |
500 |
0.59 |
5001 |
0.75 |
2.25 |
0.375 |
9,752 |
14,605 |
4,462 |
500 |
0.88 |
5002 |
1 |
2.5 |
0.5 |
15,921 |
20,702 |
3,825 |
500 |
1.25 |
5003 |
1.25 |
2.75 |
0.625 |
22,754 |
26,475 |
3,346 |
500 |
1.66 |
5004 |
1.5 |
3 |
0.75 |
30,710 |
32,665 |
2,975 |
500 |
2.13 |
5005 |
1.75 |
3.25 |
0.875 |
39,787 |
39,010 |
1,890 |
500 |
2.65 |
5006 |
2 |
3.5 |
1 |
49,982 |
45,465 |
1,718 |
500 |
3.24 |
5007 |
2.25 |
3.75 |
1.125 |
61,296 |
51,949 |
1,575 |
500 |
3.88 |
5008 |
2.5 |
4 |
0.25 |
14,745 |
16,696 |
2,059 |
500 |
1.43 |
5009 |
2.75 |
4.25 |
0.375 |
24,319 |
24,465 |
1,912 |
500 |
1.97 |
5010 |
3 |
4.5 |
0.5 |
34,672 |
31,263 |
1,785 |
500 |
2.56 |
5011 |
3.25 |
4.75 |
0.625 |
46,146 |
38,850 |
1,673 |
500 |
3.20 |
5012 |
3.5 |
5 |
0.75 |
58,739 |
45,301 |
1,575 |
500 |
3.90 |
5013 |
3.75 |
5.25 |
0.875 |
72,451 |
53,110 |
1,050 |
500 |
4.66 |
5014 |
4 |
5.5 |
1 |
87,281 |
61,156 |
995 |
500 |
5.48 |
5015 |
4.25 |
5.75 |
1.125 |
103,228 |
66,912 |
945 |
500 |
6.35 |
5016 |
4.5 |
6 |
0.25 |
24,412 |
24,412 |
1,275 |
500 |
2.29 |
5017 |
4.75 |
6.25 |
0.375 |
38,297 |
30,742 |
1,217 |
500 |
3.05 |
5018 |
5 |
6.5 |
0.5 |
53,301 |
39,646 |
1,164 |
500 |
3.86 |
5019 |
5.25 |
6.75 |
0.625 |
69,422 |
48,568 |
1,115 |
500 |
4.74 |
LinkedIn
Substack
